# React源码学习进阶（三）rootFiber的创建流程

> 本文采用React v16.13.1版本源码进行分析

### 源码解析

我们调用`ReactDOM.render`方法进行渲染，其实在`Fiber`架构下是同步渲染模式，它的入口代码在`packages/react-dom/src/client/ReactDOMLegacy.js`（从命名上可以看出来，React后续会淘汰这种渲染模式，终于在18版本中默认采用了`concurrent`）：

```js
export function render(
  element: React$Element<any>,
  container: Container,
  callback: ?Function,
) {
  return legacyRenderSubtreeIntoContainer(
    null,
    element,
    container,
    false,
    callback,
  );
}
```

这个方法调用的是`legacyRenderSubtreeIntoContainer`方法：

```js
function legacyRenderSubtreeIntoContainer(
  parentComponent: ?React$Component<any, any>,
  children: ReactNodeList,
  container: Container,
  forceHydrate: boolean,
  callback: ?Function,
) {
  let root: RootType = (container._reactRootContainer: any);
  let fiberRoot;
  if (!root) {
    // Initial mount
    root = container._reactRootContainer = legacyCreateRootFromDOMContainer(
      container,
      forceHydrate,
    );
    fiberRoot = root._internalRoot;
    if (typeof callback === 'function') {
      const originalCallback = callback;
      callback = function() {
        const instance = getPublicRootInstance(fiberRoot);
        originalCallback.call(instance);
      };
    }
    // Initial mount should not be batched.
    unbatchedUpdates(() => {
      updateContainer(children, fiberRoot, parentComponent, callback);
    });
  } else {
    fiberRoot = root._internalRoot;
    if (typeof callback === 'function') {
      const originalCallback = callback;
      callback = function() {
        const instance = getPublicRootInstance(fiberRoot);
        originalCallback.call(instance);
      };
    }
    // Update
    updateContainer(children, fiberRoot, parentComponent, callback);
  }
  return getPublicRootInstance(fiberRoot);
}
```

这个方法的逻辑很清晰，对于初次挂载的场景，它主要做了几件事情：

1. 调用`legacyCreateRootFromDOMContainer`创建`root`节点
2. 调用`updateContainer`启动整个更新流程（挂载流程）
3. 返回root节点的`instance`，这个逻辑可以不用关注，基本上我们不会使用这个返回值来做什么。

#### root节点的创建流程

接下来我们看一下root节点是怎样被创建出来的，主要入口在`legacyCreateRootFromDOMContainer`中：

```js
function legacyCreateRootFromDOMContainer(
  container: Container,
  forceHydrate: boolean,
): RootType {
  const shouldHydrate =
    forceHydrate || shouldHydrateDueToLegacyHeuristic(container);
  // First clear any existing content.
  if (!shouldHydrate) {
    let warned = false;
    let rootSibling;
    while ((rootSibling = container.lastChild)) {
      container.removeChild(rootSibling);
    }
  }

  return createLegacyRoot(
    container,
    shouldHydrate
      ? {
          hydrate: true,
        }
      : undefined,
  );
}
```

这个函数逻辑其实非常简单，清理掉之前挂载过的内容后，调用`createLegacyRoot`方法。这个方法位于`packages/react-dom/src/client/ReactDOMRoot.js`中：

```js
export function createLegacyRoot(
  container: Container,
  options?: RootOptions,
): RootType {
  return new ReactDOMBlockingRoot(container, LegacyRoot, options);
}
```

再看看`ReactDOMBlockingRoot`：

```js
function ReactDOMBlockingRoot(
  container: Container,
  tag: RootTag,
  options: void | RootOptions,
) {
  this._internalRoot = createRootImpl(container, tag, options);
}
```

可以看到构造方法里面其实就挂了一个成员变量`_internalRoot`，这个值也是刚刚在外面判断用的，具体`root`代码生成是在`createRootImpl`里：

```js
function createRootImpl(
  container: Container,
  tag: RootTag,
  options: void | RootOptions,
) {
  // Tag is either LegacyRoot or Concurrent Root
  const hydrate = options != null && options.hydrate === true;
  const hydrationCallbacks =
    (options != null && options.hydrationOptions) || null;
  const root = createContainer(container, tag, hydrate, hydrationCallbacks);
  markContainerAsRoot(root.current, container);
  if (hydrate && tag !== LegacyRoot) {
    const doc =
      container.nodeType === DOCUMENT_NODE
        ? container
        : container.ownerDocument;
    eagerlyTrapReplayableEvents(container, doc);
  }
  return root;
}
```

这里核心就做了两件事：

* 调用`createContainer`创建root
* 调用`markContainerAsRoot`为container打上root标记

对于第二点只是在DOM节点上挂了一个引用，没什么好说的，重点来看看`root`的实现，位于`packages/react-reconciler/src/ReactFiberReconciler.js`：

```js
export function createContainer(
  containerInfo: Container,
  tag: RootTag,
  hydrate: boolean,
  hydrationCallbacks: null | SuspenseHydrationCallbacks,
): OpaqueRoot {
  return createFiberRoot(containerInfo, tag, hydrate, hydrationCallbacks);
}
```

最终它会通过`createFiberRoot`，位于`packages/react-reconciler/src/ReactFiberRoot.js`：

```js
export function createFiberRoot(
  containerInfo: any,
  tag: RootTag,
  hydrate: boolean,
  hydrationCallbacks: null | SuspenseHydrationCallbacks,
): FiberRoot {
  const root: FiberRoot = (new FiberRootNode(containerInfo, tag, hydrate): any);
  if (enableSuspenseCallback) {
    root.hydrationCallbacks = hydrationCallbacks;
  }

  // Cyclic construction. This cheats the type system right now because
  // stateNode is any.
  const uninitializedFiber = createHostRootFiber(tag);
  root.current = uninitializedFiber;
  uninitializedFiber.stateNode = root;

  initializeUpdateQueue(uninitializedFiber);

  return root;
}
```

注意这里的几个参数，`containerInfo`实际上就是DOM节点本身，`tag`是`LegacyRoot`，接下来核心就是做了三件事：

* 实例化root节点，构造函数是`FiberRootNode`
* 创建一个`rootFiber`，通过`createHostRootFiber`，并通过`current`和`stateNode`双向引用
* 初始化`updateQueue`

首先看一下`root`的构造函数：

```js
function FiberRootNode(containerInfo, tag, hydrate) {
  this.tag = tag;
  this.current = null;
  this.containerInfo = containerInfo;
  this.pendingChildren = null;
  this.pingCache = null;
  this.finishedExpirationTime = NoWork;
  this.finishedWork = null;
  this.timeoutHandle = noTimeout;
  this.context = null;
  this.pendingContext = null;
  this.hydrate = hydrate;
  this.callbackNode = null;
  this.callbackPriority = NoPriority;
  this.firstPendingTime = NoWork;
  this.firstSuspendedTime = NoWork;
  this.lastSuspendedTime = NoWork;
  this.nextKnownPendingLevel = NoWork;
  this.lastPingedTime = NoWork;
  this.lastExpiredTime = NoWork;

  if (enableSchedulerTracing) {
    this.interactionThreadID = unstable_getThreadID();
    this.memoizedInteractions = new Set();
    this.pendingInteractionMap = new Map();
  }
  if (enableSuspenseCallback) {
    this.hydrationCallbacks = null;
  }
}
```

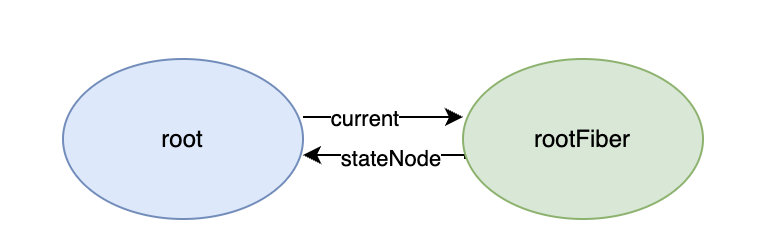

这里大多数参数目前不需要关注，只需要关注`root`节点自己通过`current`和`stateNode`双向链接起来了：

![image-20220914220816376](https://tva1.sinaimg.cn/large/e6c9d24egy1h66hkxbpj1j20lc06wjri.jpg)

接下来我们看一下`createHostRootFiber`的逻辑，源码位于`packages/react-reconciler/src/ReactFiber.js`：

```js
export function createHostRootFiber(tag: RootTag): Fiber {
  let mode;
  if (tag === ConcurrentRoot) {
    mode = ConcurrentMode | BlockingMode | StrictMode;
  } else if (tag === BlockingRoot) {
    mode = BlockingMode | StrictMode;
  } else {
    mode = NoMode;
  }

  if (enableProfilerTimer && isDevToolsPresent) {
    // Always collect profile timings when DevTools are present.
    // This enables DevTools to start capturing timing at any point–
    // Without some nodes in the tree having empty base times.
    mode |= ProfileMode;
  }

  return createFiber(HostRoot, null, null, mode);
}
```

实际上这段代码就是计算一个`mode`值，然后调用`createFiber`创建一个Fiber返回，实际上对于`ReactDOM.render`来说，这里`mode`计算出来就是默认的`NoMode`：

```js
const createFiber = function(
  tag: WorkTag,
  pendingProps: mixed,
  key: null | string,
  mode: TypeOfMode,
): Fiber {
  // $FlowFixMe: the shapes are exact here but Flow doesn't like constructors
  return new FiberNode(tag, pendingProps, key, mode);
};
```

而`FiberNode`的构造函数是：

```js
function FiberNode(
  tag: WorkTag,
  pendingProps: mixed,
  key: null | string,
  mode: TypeOfMode,
) {
  // Instance
  this.tag = tag;
  this.key = key;
  this.elementType = null;
  this.type = null;
  this.stateNode = null;

  // Fiber
  this.return = null;
  this.child = null;
  this.sibling = null;
  this.index = 0;

  this.ref = null;

  this.pendingProps = pendingProps;
  this.memoizedProps = null;
  this.updateQueue = null;
  this.memoizedState = null;
  this.dependencies = null;

  this.mode = mode;

  // Effects
  this.effectTag = NoEffect;
  this.nextEffect = null;

  this.firstEffect = null;
  this.lastEffect = null;

  this.expirationTime = NoWork;
  this.childExpirationTime = NoWork;

  this.alternate = null;

  if (enableProfilerTimer) {
    // Note: The following is done to avoid a v8 performance cliff.
    //
    // Initializing the fields below to smis and later updating them with
    // double values will cause Fibers to end up having separate shapes.
    // This behavior/bug has something to do with Object.preventExtension().
    // Fortunately this only impacts DEV builds.
    // Unfortunately it makes React unusably slow for some applications.
    // To work around this, initialize the fields below with doubles.
    //
    // Learn more about this here:
    // https://github.com/facebook/react/issues/14365
    // https://bugs.chromium.org/p/v8/issues/detail?id=8538
    this.actualDuration = Number.NaN;
    this.actualStartTime = Number.NaN;
    this.selfBaseDuration = Number.NaN;
    this.treeBaseDuration = Number.NaN;

    // It's okay to replace the initial doubles with smis after initialization.
    // This won't trigger the performance cliff mentioned above,
    // and it simplifies other profiler code (including DevTools).
    this.actualDuration = 0;
    this.actualStartTime = -1;
    this.selfBaseDuration = 0;
    this.treeBaseDuration = 0;
  }

  // This is normally DEV-only except www when it adds listeners.
  // TODO: remove the User Timing integration in favor of Root Events.
  if (enableUserTimingAPI) {
    this._debugID = debugCounter++;
    this._debugIsCurrentlyTiming = false;
  }
}
```

其中`Fiber`的数据结构上篇文章已经讲过，这里不再赘述。

要注意的是这里的`stateNode`在外面被指向了`root`。

最后我们来看一下`initializeUpdateQueue`的逻辑，源码位于`packages/react-reconciler/src/ReactUpdateQueue.js`：

```js
export function initializeUpdateQueue<State>(fiber: Fiber): void {
  const queue: UpdateQueue<State> = {
    baseState: fiber.memoizedState,
    baseQueue: null,
    shared: {
      pending: null,
    },
    effects: null,
  };
  fiber.updateQueue = queue;
}
```

可以看到它就是一个初始的`queue`结构，而这个结构将用于服务后续我们更新`state`的流程。

至此，我们的`root`节点就已经创建完毕了。

### 小结一下

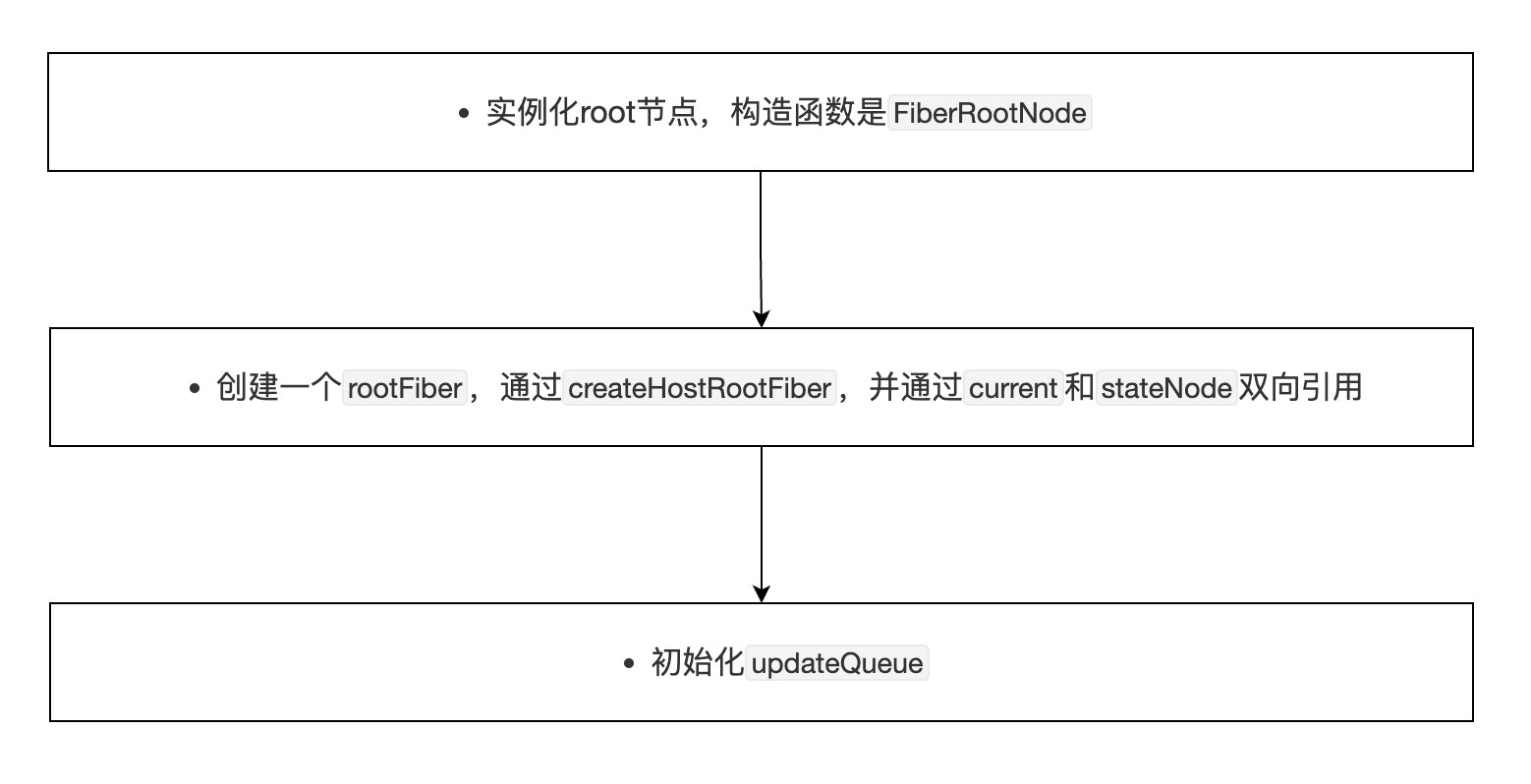

实际上`root`和`rootFiber`的创建流程还是比较简单的，它们在创建过程中主要就做了三件事：

![image-20220914222253261](https://tva1.sinaimg.cn/large/e6c9d24egy1h66i03ifuvj217a0m675l.jpg)

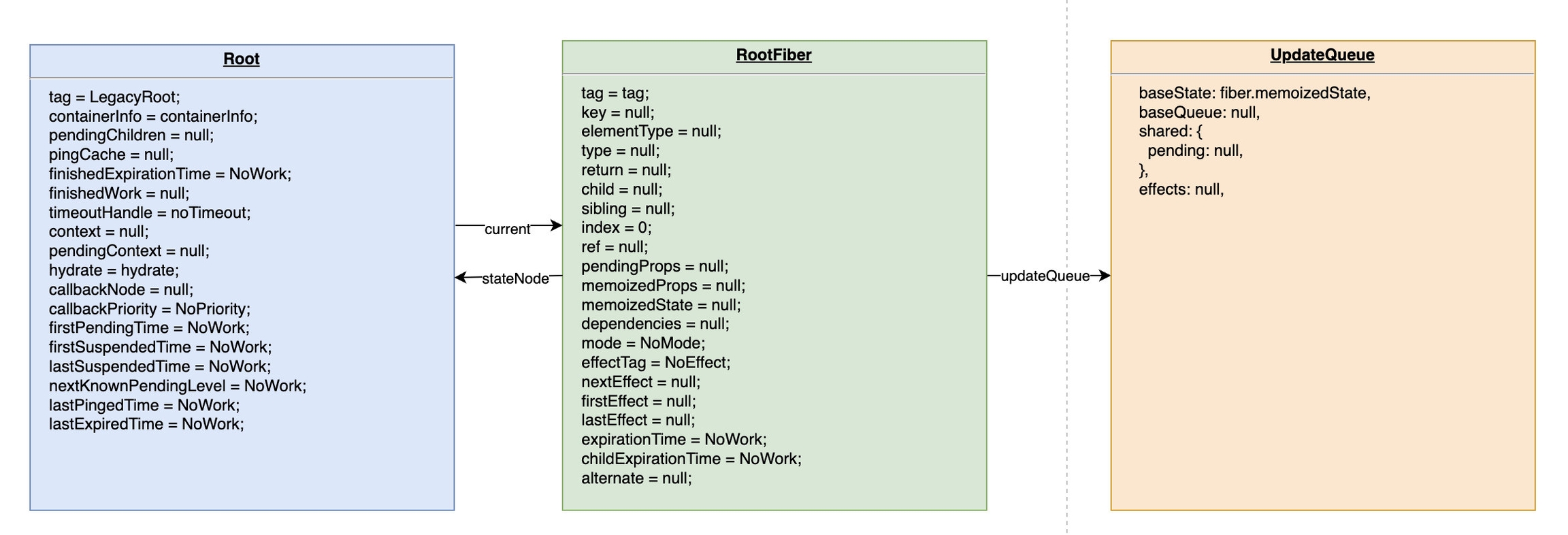

我们需要注意的是`root`和`rootFiber`本身的数据结构，以及它们作为双向链表的起点自身的链接关系：

![image-20220914223300841](https://tva1.sinaimg.cn/large/e6c9d24egy1h66iampdn2j21t40m8q85.jpg)

整个`root`结构实际上是挂载和更新的起点，React Fiber通过整个root结构的创建和更新来完成后续整个更新操作链路。


---
